ALKO Side Lift Jack Kit 2000kg
Description

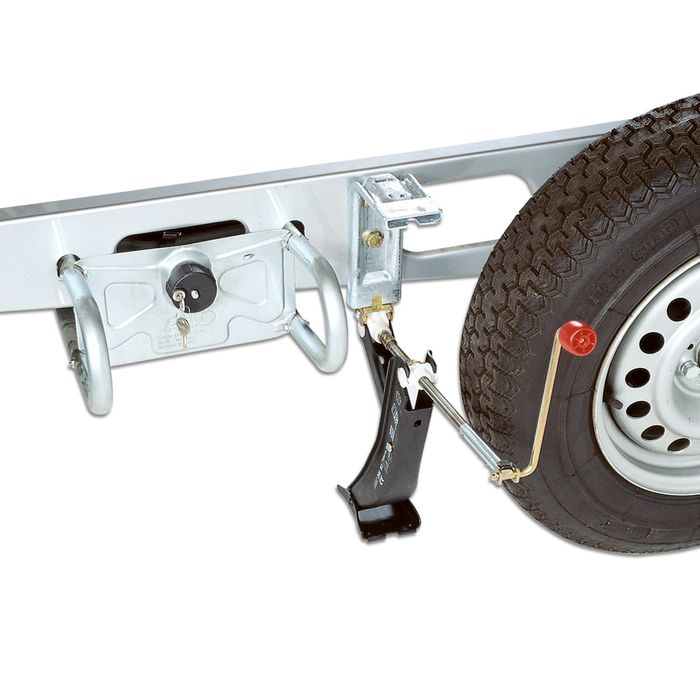

ALKO Side Lift Jack Kit
For caravans with a maximum gross weight of 2000kg
Comeplete kit with brackets & fixings (STORAGE BAG NOT INCLUDED)
Kit contents:
1 x Side lift jack
2 x Inner jack brackets
2 x Outer jack brackets
8 x M13 Washers
4 x M12x35 Bolt
4 x M12 Nylock Nut
1 x Instructions
TECHNICAL INFORMATION
1 This product is suitable for use with caravans with a
Maximum Gross Weight of 2000kg (1000kg static load).
2 The jack brackets can be attached to caravans fitted
with AL-KO Chassis, manufactured from 1980.
CARAVANS MANUFACTURED FROM 1980 - 1991
Drilling of the chassis is required but only in accordance
with the instructions printed in this handbook.
CARAVANS MANUFACTURED AFTER 1991
No drilling is required as the chassis frame will
already have the pre-punched holes.
3 These brackets can only be fitted to high frame
chassis 215 mm.
WARNINGS
1 NEVER LIE UNDERNEATH A JACKED-UP VEHICLE, AS
THIS IS HIGHLY DANGEROUS AND COULD RESULT IN
SERIOUS INJURY OR EVEN DEATH!
2 The caravan MUST be attached to the towing vehicle
and the handbrake on both the towing vehicle and
caravan MUST be applied.
3 The AL-KO Caravan Jack is not designed to be used
as a permanent steady, but it can be used as an aid to
levelling the caravan, in additional to changing the wheel.
4 In the case of manual towing vehicles, select 1st or
reverse gear; with automatic towing vehicles, place the
selector lever in the āPā position.
5 As an additional safety measure, chock the caravan
wheel (back and front) on the opposite side to the one
to be changed.
HOW DO I KNOW WHICH JACK I NEED?
There are two side lift jacks kits available, the 2000kg
version and the 1600kg version. This figure is based on the
maximum weight of the caravan. The jacks will lift a static
load of 1000kg and 800kg respectively.
