Purpleline Quattro Titanium Manual Single Axle Motor Mover
Description
Strong, precision cast 130mm aluminium rollers
Powerful motor and custom gearbox for efficient power transfer

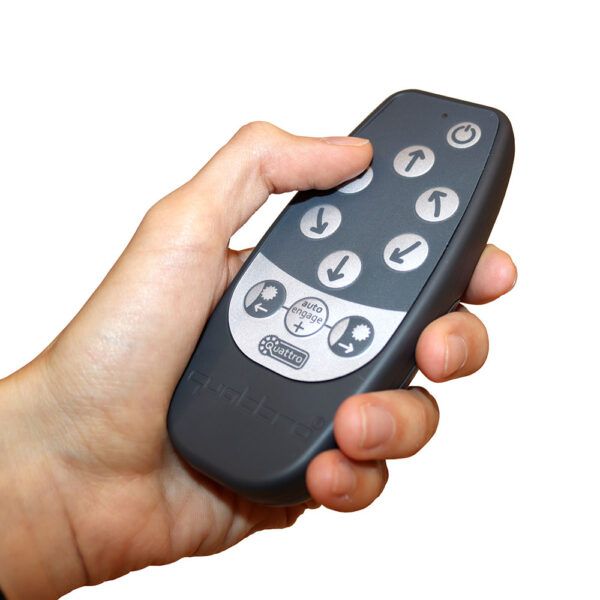

Easy-to-use cordless remote control

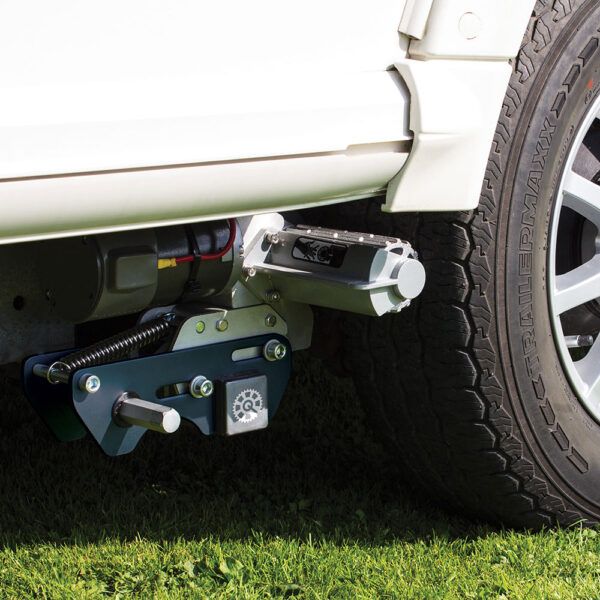

Quattro Titanium is Australia’s best-value caravan mover, combining a simple over-centre engager with the same high-torque motors used with all Quattro movers.
Powerful motors and precision-cut gears move your caravan safely and surely over loose and sloping surfaces and protect against slipping or rolling backwards. Strong, lightweight alloy construction makes Quattro Titanium up to 10kgs lighter than other movers while delivering heavy-duty performance and safety at an unbeatable price.
As with all Quattro movers, the Quattro Titanium comes with all the required fittings, cables and instructions for DIY or professional installation, and is covered by a 2-year no quibble warranty. Order a two-motor set for single axle installations or a four-motor set for dual axles options.
Safety Features
Isolation switch fitted to prevent accidental use of the remote
Unique double press ‘on’ button on the handset to prevent accidental operation

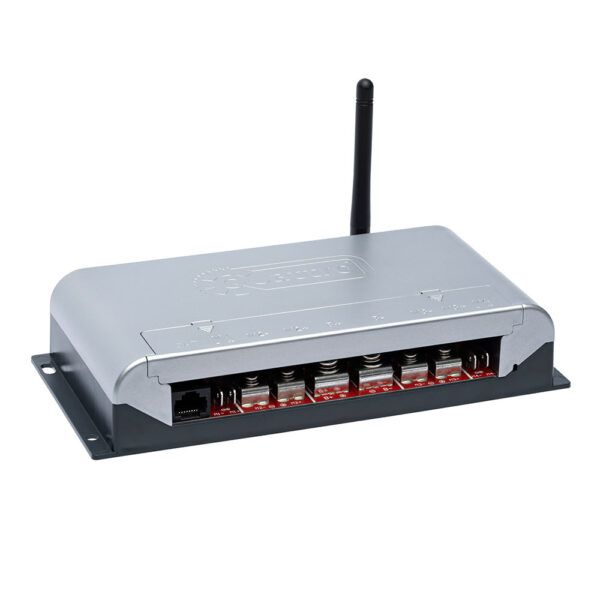

Control unit and handset will shut down automatically after 60 seconds if the handset is not used in that time
Control unit will shut down if the mover is working constantly in one direction for 3 minutes
Built in motor overload protection (current and temperature) – no requirement for a fuse
Automatically brakes immediately as soon as the handset button is released
Operational Voltage 12V DC
Avg Current Consumption 25 Amps
Max Current Consumption 120 Amps
Max Speed 12cm / sec
Weight 29kg (includes fit kit)
Minimum Width (caravan/trailer) 1800mm
Maximum Width (caravan/trailer) 2500mm
Safe Working Load (SWL) (2250kg - 2 motors) up to 1.5 tonnes on a 25% incline
Safe Working Load (SWL) (3000kg - 4 motors) up to 2.5 tonnes on a 20% incline
If you have any questions, please contact us:
Phone- 03-338-5739
Email- sales@uk-caravans.co.nz
