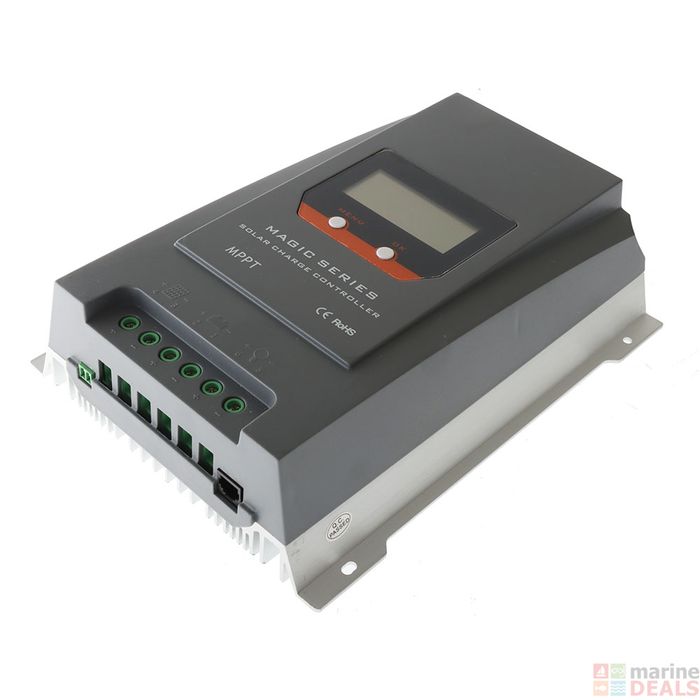

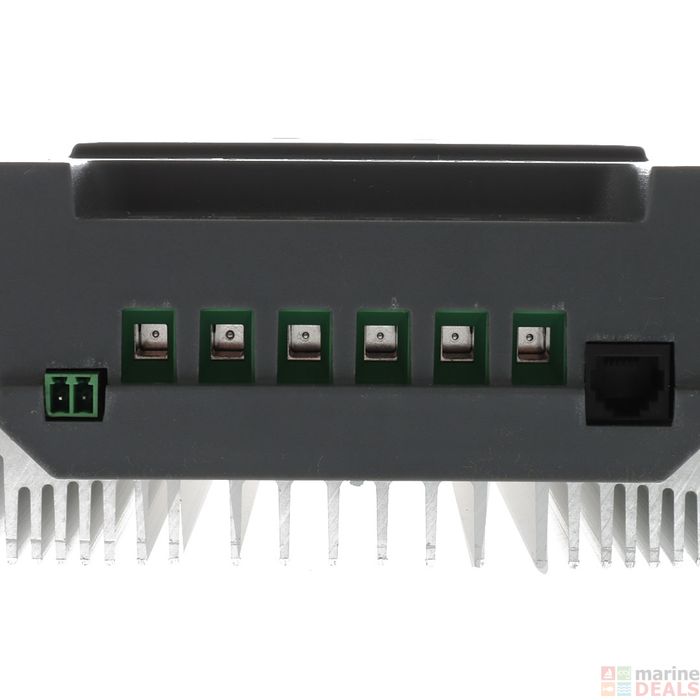

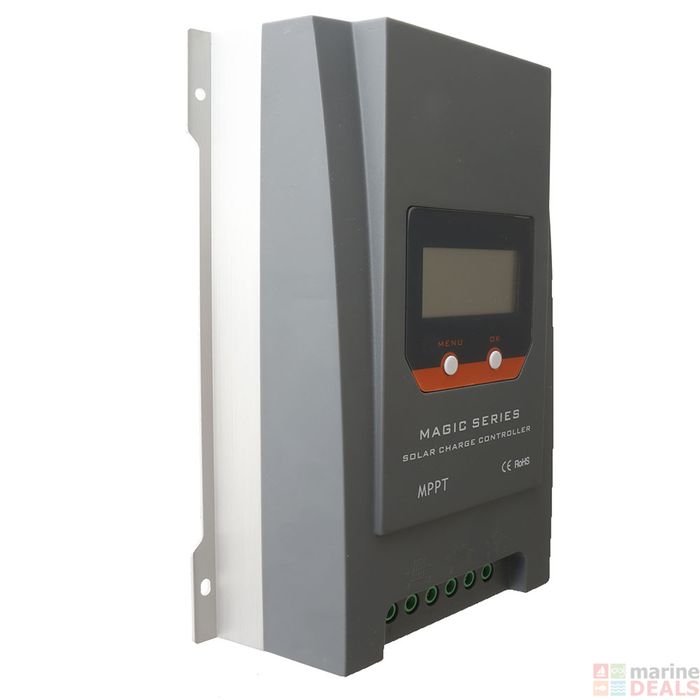

MPPT 30Amp Solar Controller
Description
Solar Controller
MPPT 30Amp
The MPPT Smart Solar Charger Controller adopts MPPT (maximum power point tracking algorithm) control algorithm, which improves the efficiency of solar system energy due to the capacity to quickly track the maximum power point in any environment. The MPPT Solar Charge Controller also adopts the RS485 communication protocol, which can meet monitoring demands. It can be used for solar telecom base station, solar BTS, solar household system, solar street lamp system and solar monitoring systems.
MPPT Smart Solar Charger Controller Features:
Innovative MPPT technology - tracking efficiency: 99.9%, conversion efficiency up to 97%
Real-time LCD display
Supports 3 charging options: Sealed, Gel, Liquid
Two navigation buttons
12/24V automatic, recognition, temperature compensation, perfect EMC design
4-Stage charge management: MPPT, Boost, Equalisation, Float
Fully automatic electronic protect function
MPPT Smart Solar Charger Controller Specifications:
Battery Parameters
Model: MT3010
Max charging current: 30A
System voltage: 12V/24V automatic recognition
MPPT charging voltage: <14.5V/29.0V @ 25°C
Boost voltage: 14.5V/29.0V @ 25°C
Equalisation voltage: 14.8V/29.6V @ 25°C
Float voltage: 13.7/27.4V @ 25°C
Low voltage disconnect: 10.8~11.8V/21.6~23.6V; SOC1~5
Low voltage reconnect: 11.6~12.8V/23.2V~25.6V
Overcharge protect: 15.5V/31.0V
Max battery voltage: 35V
Temp compensation: -4.17mV/K per cell (Boost, Equal), -3.33mV/K per cell (Float)
Battery type: AGM, Liquid, GEL
Panel Parameters
Max solar voltage: 100V (-20°C), 90V (25°C)
Max input power: 390/780W
Dusk/Dawn detect volt.: 8.0V/16.0V
MPPT tracking range: (Battery Voltage+1.0V) ~Voc*0.9*
Load
Output current: 30A
Load mode: Always on, Dusk to Dawn, Evening, Manual
System Parameters
Max tracking efficiency: >99.9%
Max charge conversion: 98.00%
Dimensions: 189 x 255 x 69 mm
Weight: 1.8kg
Self consumption: =8mA (12V); =12mA (24V)
Ambient temperature: -20~+55°C
Storage temperature: -25~+80°C
Ambient humidity: 0~100%RH
Protection degree: IP32
Max altitude: 4000m
